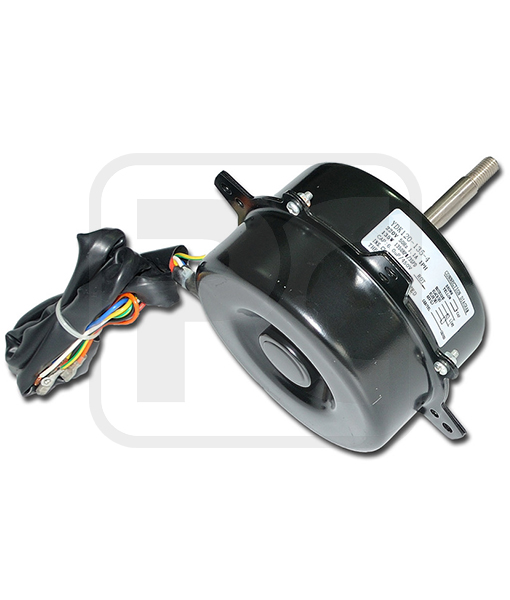

Split air Conditioner Outdoor Fan Motor Unit 0.6A 60W / Hvac Fan Types

Characteristics:

1-Shaft dia or length can be any as customers needs.
2-Stator thickness can be any from 10mm to 50mm.
3-Mounting holes size and distance can be any as customers needs.
4-Brackets height can be changed.
5-Motor rotation direction can be CW or CCW.

SKU: YDK120-60-6 Categories: ,

Description

Specification:

Model Number Output Power

/W

 Voltage

/V

 Frequency

/Hz

 Rated Speed

/RPM

 Rated Current

/A
YDK95-20-6 20 220-240 50/60 830 0.25
YDK95-25-6 25 220-240 50/60 830 0.27
YDK95-30-6 30 220-240 50/60 830 0.3
YDK95-35-6 35 220-240 50/60 800 0.33
YDK95-40-6 40 220-240 50/60 850 0.4
YDK120-50-6 50 220-240 50/60 850 0.55
YDK120-55-6 55 220-240 50/60 850 0.57
YDK120-60-6 60 220-240 50/60 850 0.6
YDK120-70-6 70 220-240 50/60 850 0.65
