Single Phase 3 Speed AC Universal Condensing Unit Fan Motor YDK140/120 Series

SKU: YDK160-735-4A2-1 Categories: ,

Description



Specifications

Powerstar: Powerstar
Type: Asynchronous Moter
Rated Voltage 208-230
Frequency: 50/60hz
Output Power: 1/6-1/2
RPM: 825/1075
Protect Feature: totally enclosed
Speed: 3
APMS: 1-3.9
Rotation REV
Phase: Single-phase
Bearing: Ball bearing
Place of Origin: Guangdong China (Mainland)
Certification: ROHS,UL
Features: A. smooth running,
B. long work times and Low temperature
C. low noise,
D. steady performance.
Specifications: • Reversible plug for easy rotation
• Class H Insulation
• Quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Dual voltage 115/208-230 voltage
• Diameter: Steel cover144mm
• Automatic overload
• Operating temp -10-43 degree
• Power:150-250W• Rated Frequency:50/60Hz

• Number of Pole: 6/8Pole
• Shaft size:15mm
• Speed: 825-1075rpm
• Thermal protection
• High efficiency,High reliability,Little vibration,Low noise





condenser fan motor

Model Power(HP) Voltage(V) Speed RPM Amps ROT Protect Feature Bearing
YDK140-120-6A 1/6 208-230 3 825 1.9 reversible totally enclosed ball
YDK140-150-6A 1/5 208-230 3 825 1.5 reversible totally enclosed ball
YDK140-185-6A3 1/5 208-230 3 825 1.2 reversible totally enclosed ball
YDK140-185-6A6 1/4 208-230 3 825 1 reversible totally enclosed ball
YDK140-185-6A7 1/4 208-230 3 1075 2.8 reversible totally enclosed ball
YDK140-185-6A8 1/4 208-230 3 1075 2 reversible totally enclosed ball
YDK140-185-6A9 1/5 208-230 3 1075 1.7 reversible totally enclosed ball
YDK140-185-6A10 1/4 208-230 3 1075 1.5 reversible totally enclosed ball
YDK140-185-6A11 1/4 208-230 3 1075 3.9 reversible totally enclosed ball
YDK140-185-6A12 1/4 208-230 3 1075 2.2 reversible totally enclosed ball
YDK140-185-6A13 1/4 208-230 3 1075 1.6 reversible totally enclosed ball
YDK140-185-4A15 1/4 208-230 3 1075 1.3 reversible totally enclosed ball

Reviews

There are no reviews yet.

Be the first to review “Single Phase 3 Speed AC Universal Condensing Unit Fan Motor YDK140/120 Series”

Your email address will not be published. Required fields are marked *

Related products

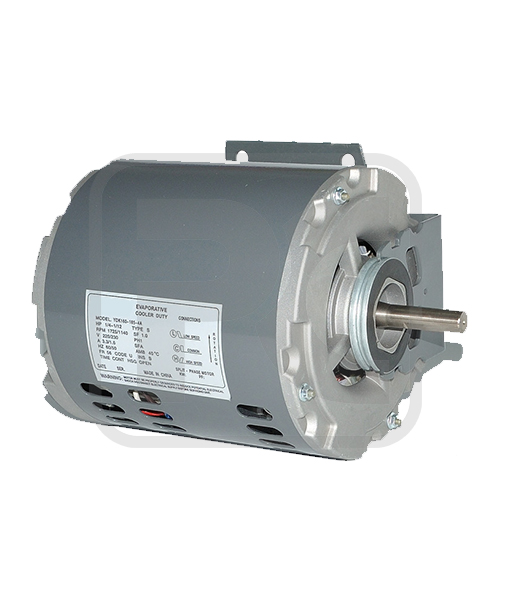

Single Phase IP44 / IP54 Asynchronous AC Air Cooler Motor With 2000 Air Flo...HVAC Condenser Fan Motors Replacement For Air Conditioners / 240V 1050RPM 6...
