Characteristics:
– The stator windings is cup-shaped winding, without cogging effect, the torque fluctuationis very small
– Nd-Fe-B Magnet, high power density
– Aluminum alloy shell, better heat dissipation, lower temperature rise
– NMB & NSK ball bearing
– Novel structure for the covers and frame Combination,ensure the installation precision
– Hall sensor inside, easy to drive
Features:
1.VDC: 20-50v, current: 8A
2.Rotating-speed display
3.Hall mode or no hall model to choose
4.Rate oprning loop or closed-loop to choose
5.Adopt new PWM pulse technology

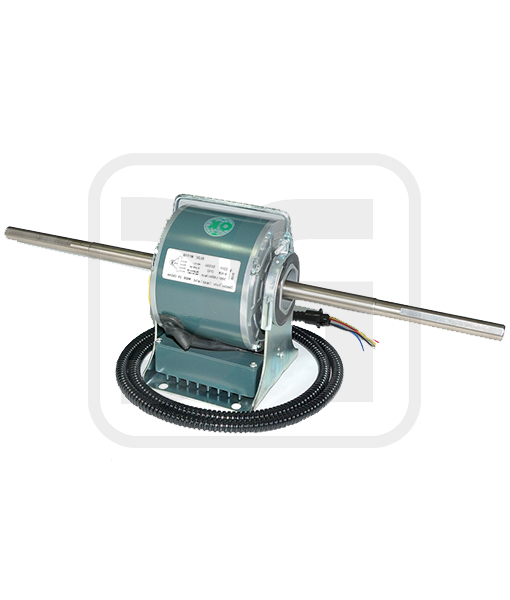

Good Cost BLDC Fan Motor With Blower Motor,Standard Frame Sizes
Technical Parameters:
| Name | BLDC motor(motor, power supply, driver) |
| Shaft type | single shaft/double shaft |
| Shaft diameter | Φ12, Φ12.7, Φ14 |
| Output power | 30W |
| 60W | |
| 90W | |
| 120W | |
| 150W | |
| 180W | |
| Input voltage | AC220V ±10% |
| Speed control | 300~1500RPM variable speed |
| 3 speed | |
| Insulation class | B/F |
BLDC-120 – Planetary Gear BLDC Fan Motor , High Rpm Brushless Motor For...
