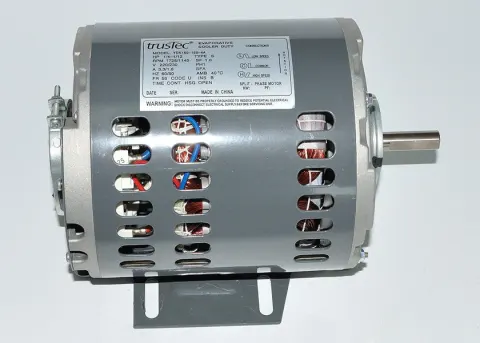

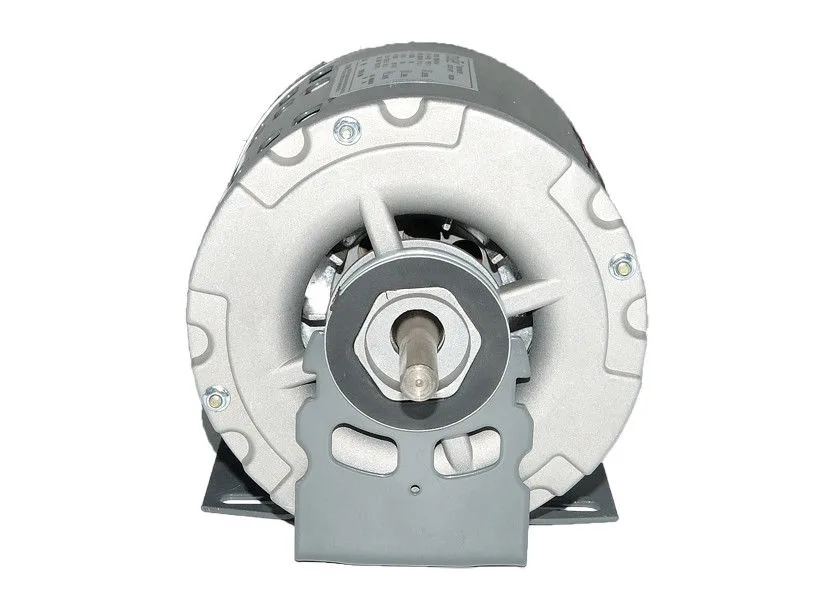

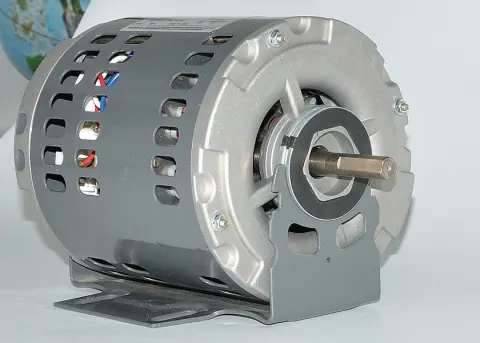

160 Series 2 Speed Cooling Fan Motor With B Insulation Class , CW-SE ROT

Product materials:

A. Bearing: rolling bearing, NSK low noise high quality material.
B. Brass terminals plug-in.
C. Shaft: single shaft, nickel plating treatment.
D. Enclosure: electrophoretic coating treatment.
E. Winding: 100% pure copper.

Product features:

A.Imported equipment & technical assistance.
B.Long Expectancy.
C.UL, CE & ISO9001 are offered by us..

SKU: YDK100-6-1 Categories: ,

Description

Product specification:

Model Power

HP

 Voltage

V

 Frequency

Hz

 Speed

RPM

 Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B
