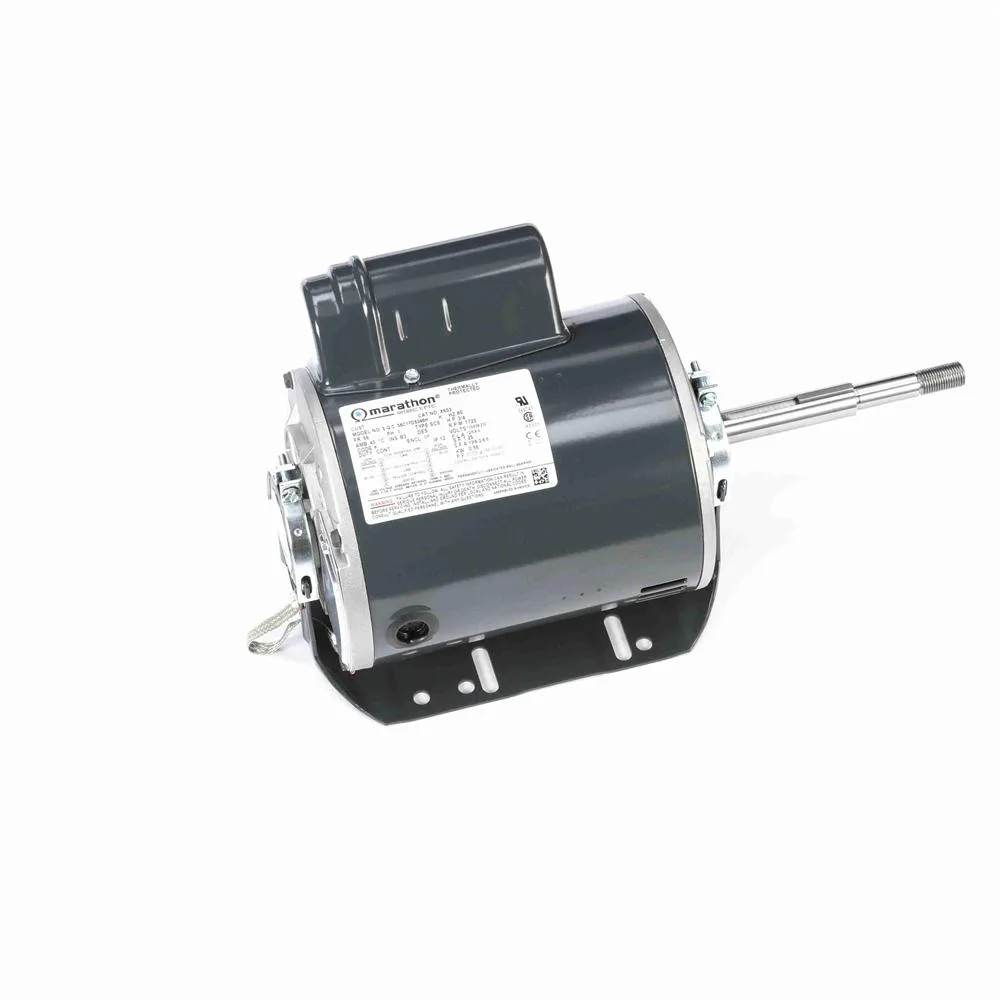

Marathon X603 Capacitor Start Blower Motor, 6-1/2" Dia., 3/4 HP, 1725 RPM, Huebsch OEM Replacement
Marathon X603 capacitor start blower motor, 6-1/2" diameter, 3/4 HP, 1725 RPM, 115/208/230 V, single phase.
- Motor type
- Capacitor start
- Power
- 3/4 HP
- Speed
- 1725 RPM
- Voltage
- 115/208/230 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Add the Marathon X603 Capacitor Start Blower Motor, 6-1/2" Dia., 3/4 HP, 1725 RPM, Huebsch OEM Replacement to your quote. Send us a photo of the nameplate of the old motor and we will confirm the match before you order.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.
Key details: Motor type: Capacitor start. Power: 3/4 HP. Speed: 1725 RPM. Voltage: 115/208/230 V, 60 Hz, single phase. Current: 12/5.8-6 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 5.66" (143.76 mm) long. Mounting: base. Part code: X603. Manufacturer model number: 056C17D5346. Listed as an OEM replacement for Huebsch.
Before you order: four quick checks
- Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 5.66" (143.76 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 3/4 HP, 1725 RPM, 115/208/230 V, 60 Hz, single phase, 12/5.8-6 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation CW (clockwise) viewed from the shaft end, mounting orientation horizontal, 1 speed.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
We supply Marathon motors and fan and blower motors to Sohar, Bidbid, Masirah and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
Specifications
| Motor type | Capacitor start |
|---|---|
| Power | 3/4 HP |
| Speed | 1725 RPM |
| Voltage | 115/208/230 V |
| Current | 12/5.8-6 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 56 |
| Motor diameter | 6-1/2" (165.1 mm) |
| Shaft diameter | 5/8" (15.88 mm) |
| Shaft length | 5.66" (143.76 mm) |
| Motor shell length | 7.06" (179.32 mm) |
| Overall length | 15.1" (383.54 mm) |
| Mounting | Base |
| Mounting orientation | Horizontal |
| Rotation | CW (clockwise) viewed from the shaft end |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.25 |
| Efficiency | 66% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Manufacturer model number | 056C17D5346 |
| SKU | FM-014 |
| Part no. | X603 |
| Brand | Marathon |
Compatibility
Listed as an OEM replacement for Huebsch.
