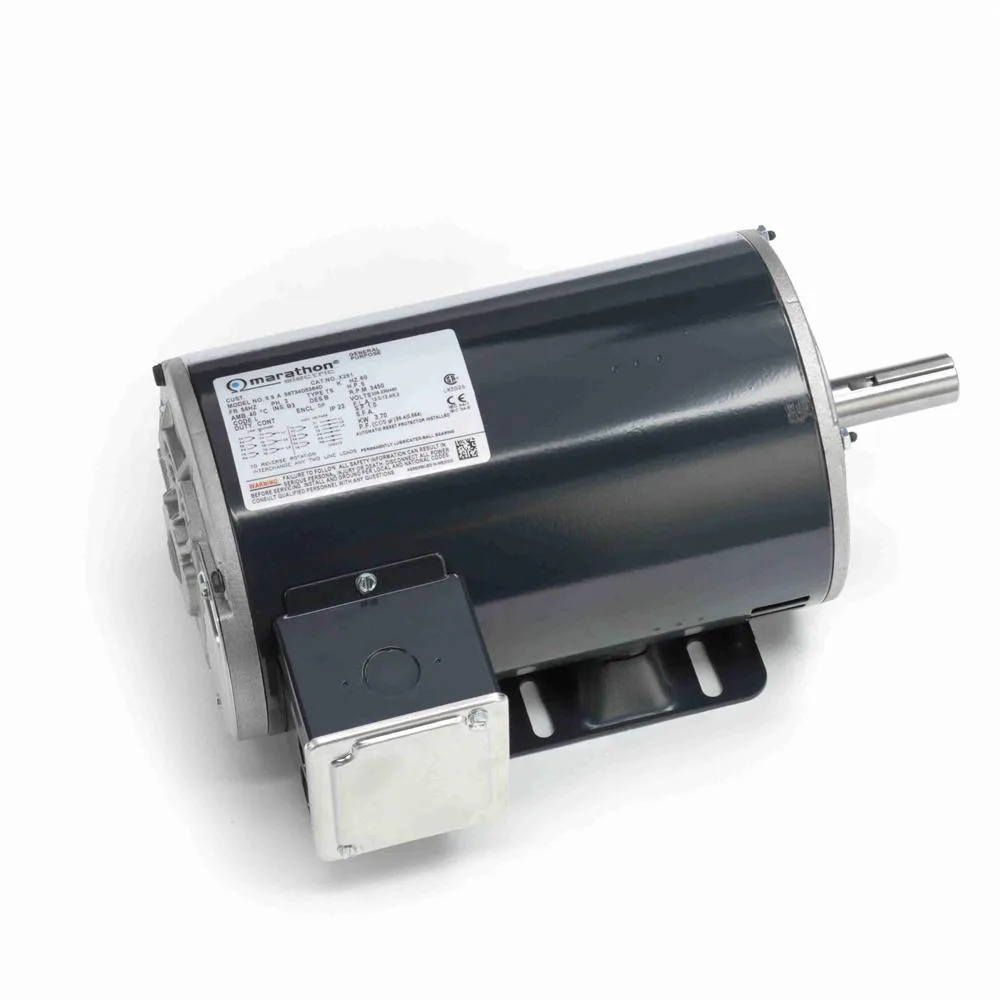

Marathon X251 3 Phase Blower Motor, 6-1/2" Dia., 5 HP, 3450 RPM, Carrier OEM Replacement

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a three phase blower motor, the Marathon X251 3 Phase Blower Motor, 6-1/2" Dia., 5 HP, 3450 RPM, Carrier OEM Replacement is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: Three phase. Power: 5 HP. Speed: 3450 RPM. Voltage: 208/230/460 V, 60 Hz, three phase. Current: 13.5-12.4/6.2 A. Frame: 56HZ. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 2.25" (57.15 mm) long. Mounting: base. Part code: X251. Manufacturer model number: 056T34D5364. Listed as an OEM replacement for Carrier.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 2.25" (57.15 mm) long, frame 56HZ, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 5 HP, 3450 RPM, 208/230/460 V, 60 Hz, three phase, 13.5-12.4/6.2 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed.
• Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Haima, Muscat and Seeb, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
