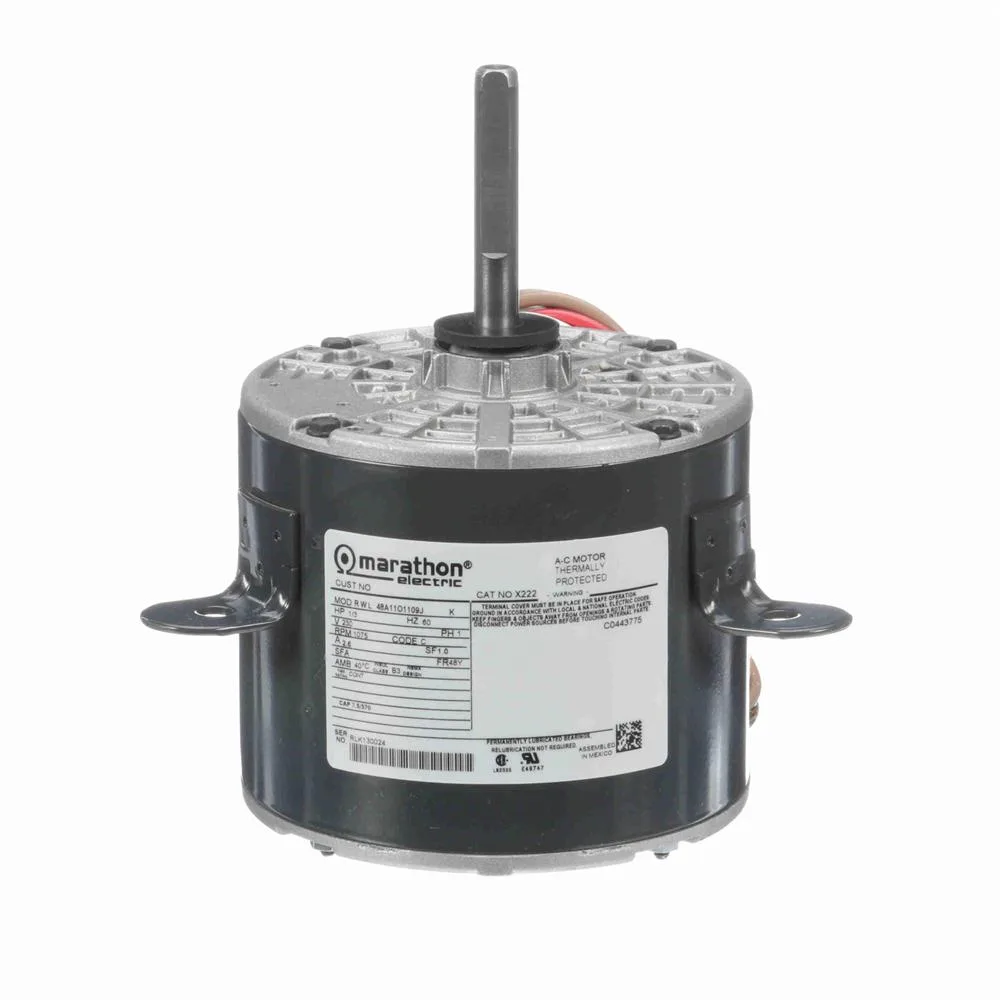

Marathon X222 PSC Blower Motor, 5-5/8" Dia., 1/3 HP, 1075 RPM, Carrier OEM Replacement

Add the Marathon X222 PSC Blower Motor, 5-5/8" Dia., 1/3 HP, 1075 RPM, Carrier OEM Replacement to your quote. Send us a photo of the nameplate of the old motor and we will confirm the match before you order.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: PSC (permanent split capacitor). Power: 1/3 HP. Speed: 1075 RPM, 2 speeds. Voltage: 230 V, 60 Hz, single phase. Current: 2.6 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 3.06" (77.72 mm) long. Mounting: bracket. Part code: X222. Manufacturer model number: 048A11O1109. Listed as an OEM replacement for Carrier.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 3.06" (77.72 mm) long, frame 48Y, mounting bracket. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 1075 RPM, 230 V, 60 Hz, single phase, 2.6 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 2 speeds. Capacitor: 7.5 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

We supply Marathon motors and fan and blower motors to Sohar, Bidbid, Masirah and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
