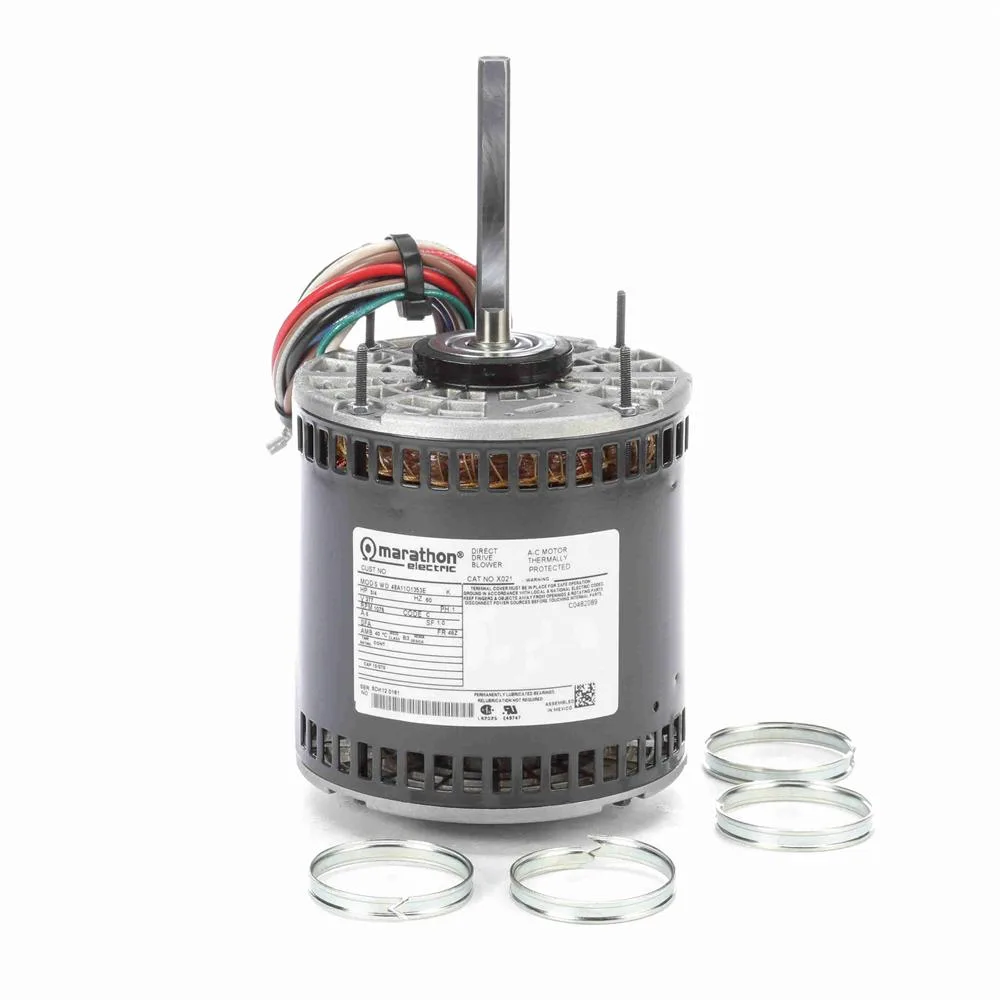

Marathon X021 PSC Direct Drive Blower Motor, 5-5/8" Dia., 3/4 HP, 1075 RPM

Looking for a PSC (permanent split capacitor) blower motor? The Marathon X021 PSC Direct Drive Blower Motor, 5-5/8" Dia., 3/4 HP, 1075 RPM is available through our online quotation service anywhere in Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 3/4 HP. Speed: 1075 RPM, 3 speeds. Voltage: 277 V, 60 Hz, single phase. Current: 5 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 4.06" (103.12 mm) long. Mounting: base / stud. Direct drive. Part code: X021. Manufacturer model number: 048A11O1353.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 4.06" (103.12 mm) long, frame 48Z, mounting base / stud. Compare them with your old motor before you order.
• Check the electrical data: 3/4 HP, 1075 RPM, 277 V, 60 Hz, single phase, 5 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 3 speeds. Capacitor: 10 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Manah, Saham and Al Hamra, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
