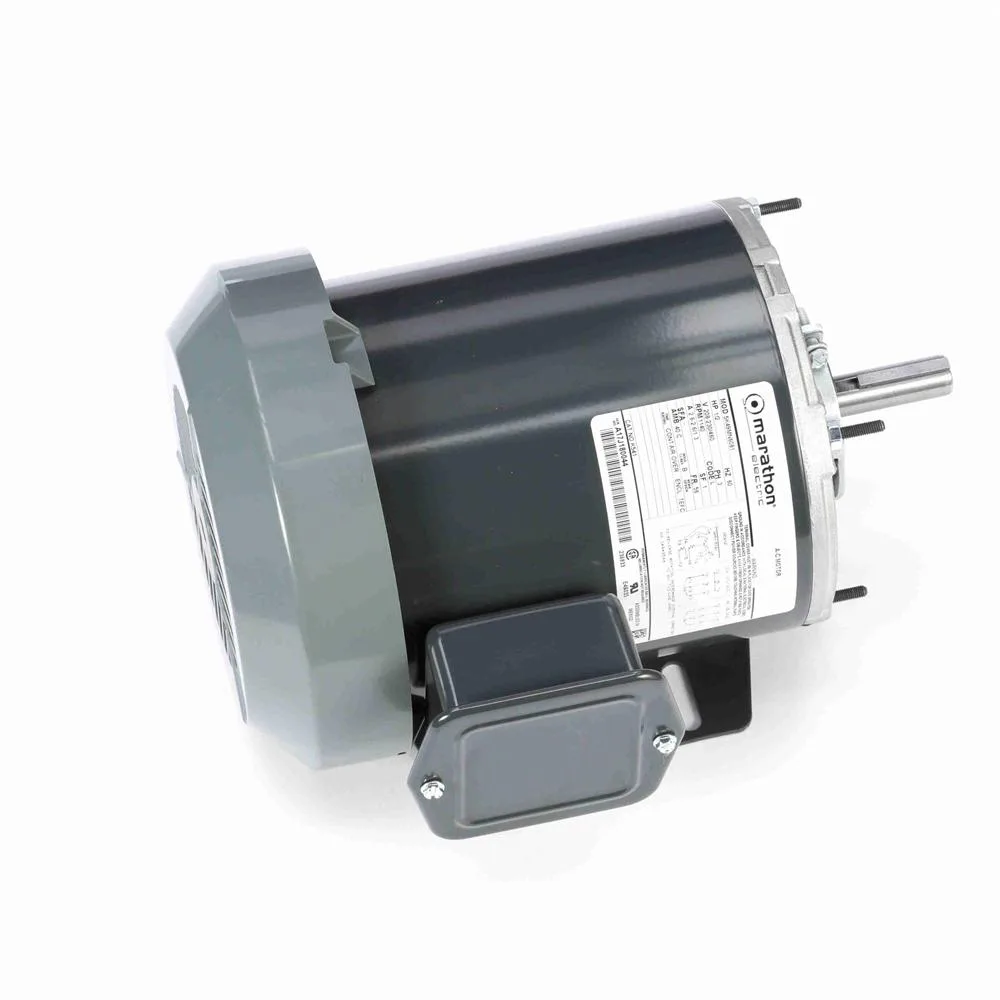

Marathon K541 3 Phase Blower Motor, 6-1/2" Dia., 1/2 HP, 1140 RPM
Marathon K541 three phase blower motor, 6-1/2" diameter, 1/2 HP, 1140 RPM, 208/230/460 V, three phase.
- Motor type
- Three phase
- Power
- 1/2 HP
- Speed
- 1140 RPM
- Voltage
- 208/230/460 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Looking for a three phase blower motor? The Marathon K541 3 Phase Blower Motor, 6-1/2" Dia., 1/2 HP, 1140 RPM is available through our online quotation service anywhere in Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Three phase. Power: 1/2 HP. Speed: 1140 RPM. Voltage: 208/230/460 V, 60 Hz, three phase. Current: 2.6-2.6/1.3 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: K541. Manufacturer model number: 5K49MN6081.
Before you order: four quick checks
- Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 1/2 HP, 1140 RPM, 208/230/460 V, 60 Hz, three phase, 2.6-2.6/1.3 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
- Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Order from anywhere in Oman, including Rustaq, Al Buraimi and Haima. Add this motor to your quotation list and send the nameplate of your old one; we confirm availability, price and delivery. See more Marathon motors or browse all fan and blower motors.
Specifications
| Motor type | Three phase |
|---|---|
| Power | 1/2 HP |
| Speed | 1140 RPM |
| Voltage | 208/230/460 V |
| Current | 2.6-2.6/1.3 A |
| Phase | 3 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 56 |
| Motor diameter | 6-1/2" (165.1 mm) |
| Shaft diameter | 5/8" (15.88 mm) |
| Shaft length | 1.88" (47.75 mm) |
| Motor shell length | 6.15" (156.21 mm) |
| Overall length | 11.54" (293.12 mm) |
| Mounting | Base |
| Mounting orientation | Any |
| Rotation | Reversible |
| Enclosure type | TEFC (totally enclosed fan cooled) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 69.9% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Manufacturer model number | 5K49MN6081 |
| SKU | FM-133 |
| Part no. | K541 |
| Brand | Marathon |
