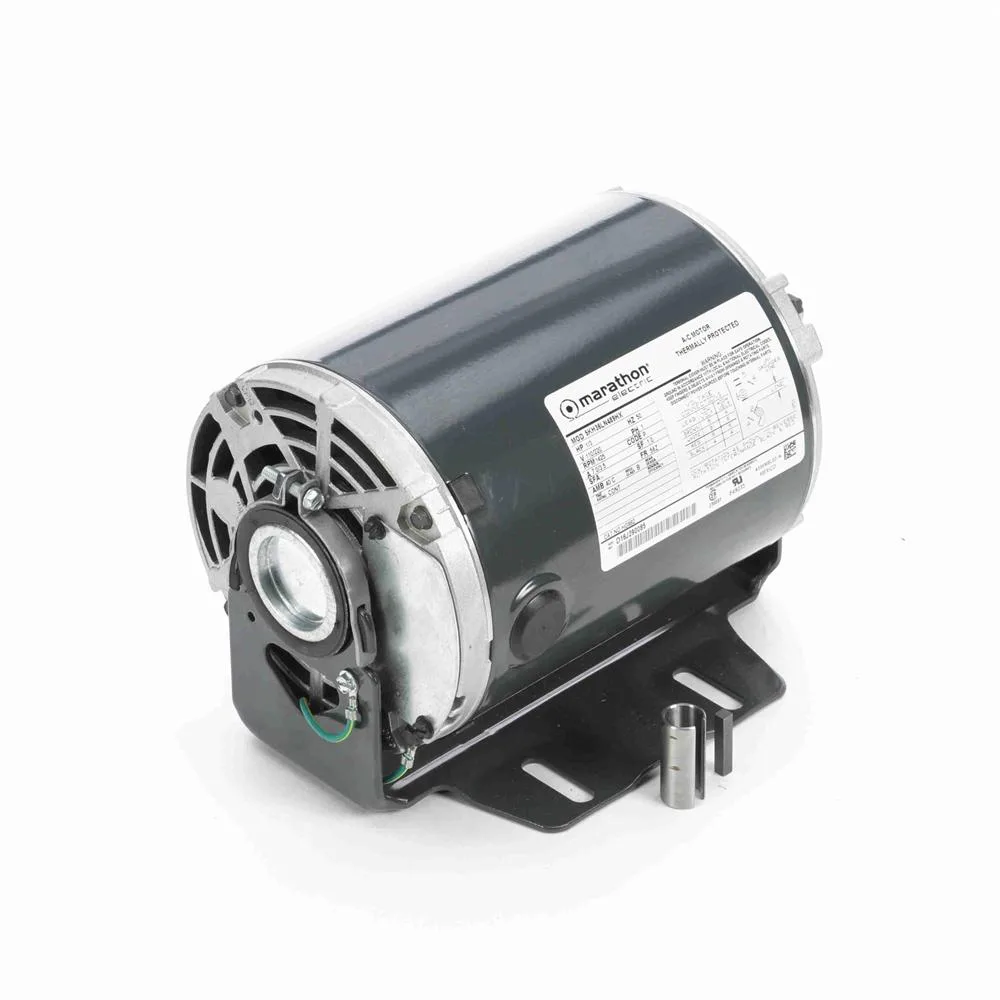

Marathon HG692 Split Phase Blower Motor, 6-1/2" Dia., 1/3 HP, 1425 RPM

Looking for a split phase blower motor? The Marathon HG692 Split Phase Blower Motor, 6-1/2" Dia., 1/3 HP, 1425 RPM is available through our online quotation service anywhere in Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/3 HP. Speed: 1425 RPM. Voltage: 110/220 V, 50 Hz, single phase. Current: 7.0/3.5 A. Frame: 56Z. Motor diameter: 6-1/2" (165.1 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: HG692. Manufacturer model number: 5KH36LN489X.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 56Z, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 1425 RPM, 110/220 V, 50 Hz, single phase, 7.0/3.5 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
• Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Sur, Duqm and Mirbat, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
