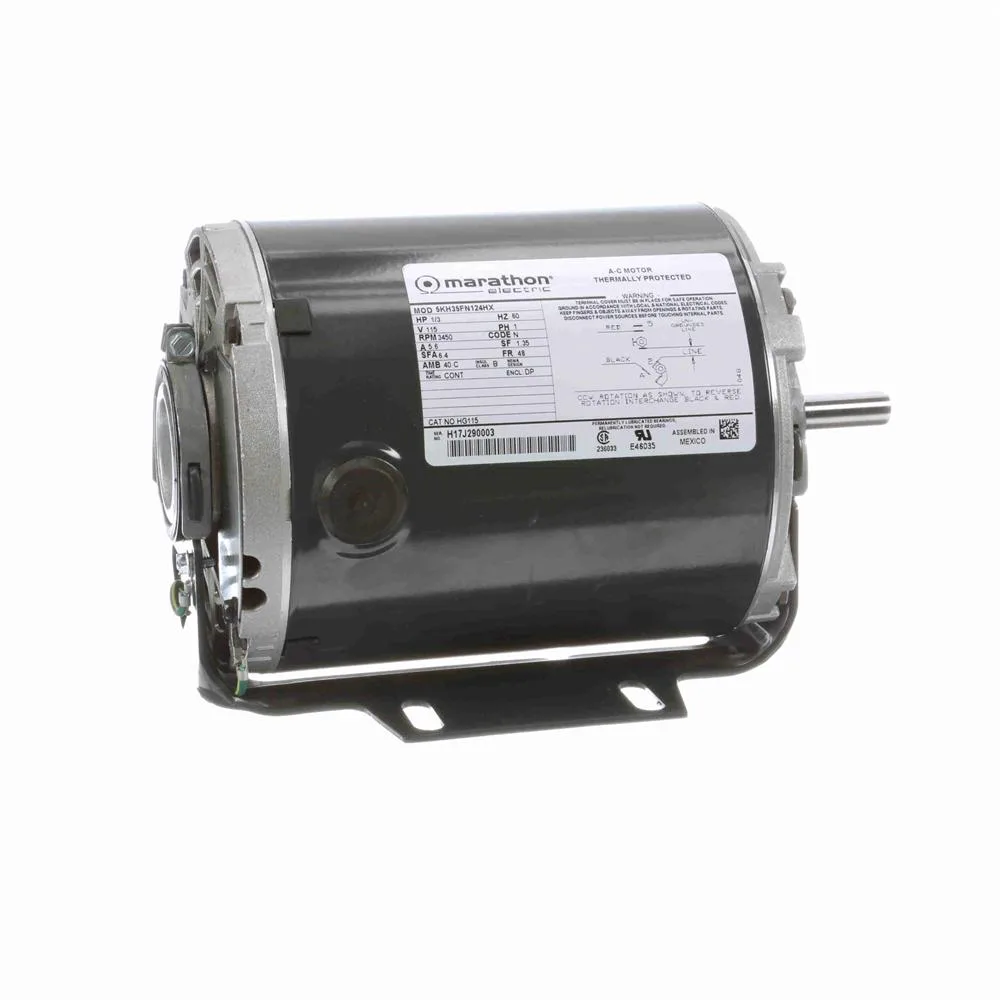

Marathon HG115 Split Phase Blower Motor, 5-5/8" Dia., 1/3 HP, 3450 RPM
Marathon HG115 split phase blower motor, 5-5/8" diameter, 1/3 HP, 3450 RPM, 115 V, single phase.
- Motor type
- Split phase
- Power
- 1/3 HP
- Speed
- 3450 RPM
- Voltage
- 115 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
The Marathon HG115 Split Phase Blower Motor, 5-5/8" Dia., 1/3 HP, 3450 RPM is part of our range of Marathon blower motors, delivered throughout Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/3 HP. Speed: 3450 RPM. Voltage: 115 V, 60 Hz, single phase. Current: 5.6 A. Frame: 48. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: HG115. Manufacturer model number: 5KH35FN124X.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 48, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 1/3 HP, 3450 RPM, 115 V, 60 Hz, single phase, 5.6 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
- Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Order from anywhere in Oman, including Seeb, Bawshar and Manah. Add this motor to your quotation list and send the nameplate of your old one; we confirm availability, price and delivery. See more Marathon motors or browse all fan and blower motors.
Specifications
| Motor type | Split phase |
|---|---|
| Power | 1/3 HP |
| Speed | 3450 RPM |
| Voltage | 115 V |
| Current | 5.6 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 48 |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 1.5" (38.1 mm) |
| Motor shell length | 5.79" (147.07 mm) |
| Overall length | 9.57" (243.08 mm) |
| Mounting | Base |
| Mounting orientation | Any |
| Rotation | Reversible |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.35 |
| Efficiency | 52.5% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Manufacturer model number | 5KH35FN124X |
| SKU | FM-225 |
| Part no. | HG115 |
| Brand | Marathon |
