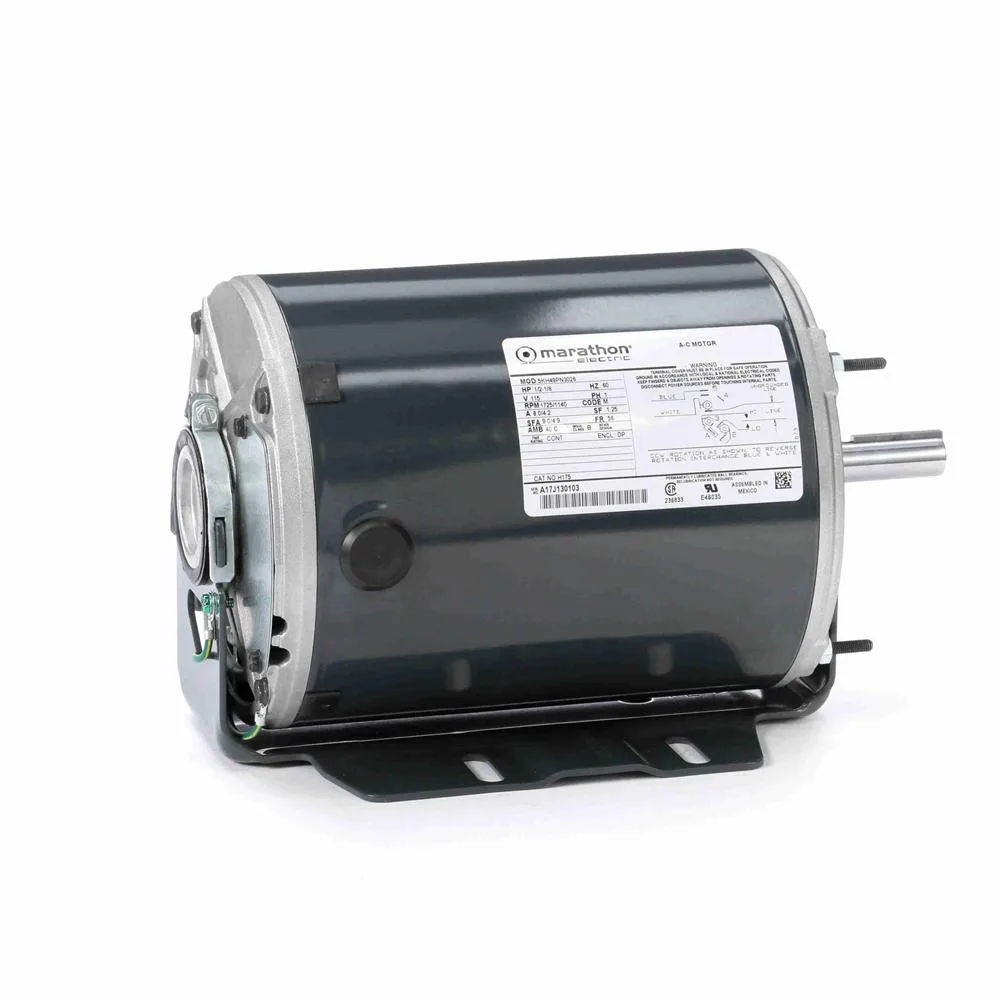

Marathon H175 Split Phase Blower Motor, 6-1/2" Dia., 1140/1725 RPM

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a split phase blower motor, the Marathon H175 Split Phase Blower Motor, 6-1/2" Dia., 1140/1725 RPM is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: Split phase. Power: 1/2, 1/6 HP. Speed: 1140/1725 RPM, 2 speeds. Voltage: 115 V, 60 Hz, single phase. Current: 8.0/4.2 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: H175. Manufacturer model number: 5KH49PN3026.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/2, 1/6 HP, 1140/1725 RPM, 115 V, 60 Hz, single phase, 8.0/4.2 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 2 speeds.
• Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Salalah, Bahla and Ibri, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
