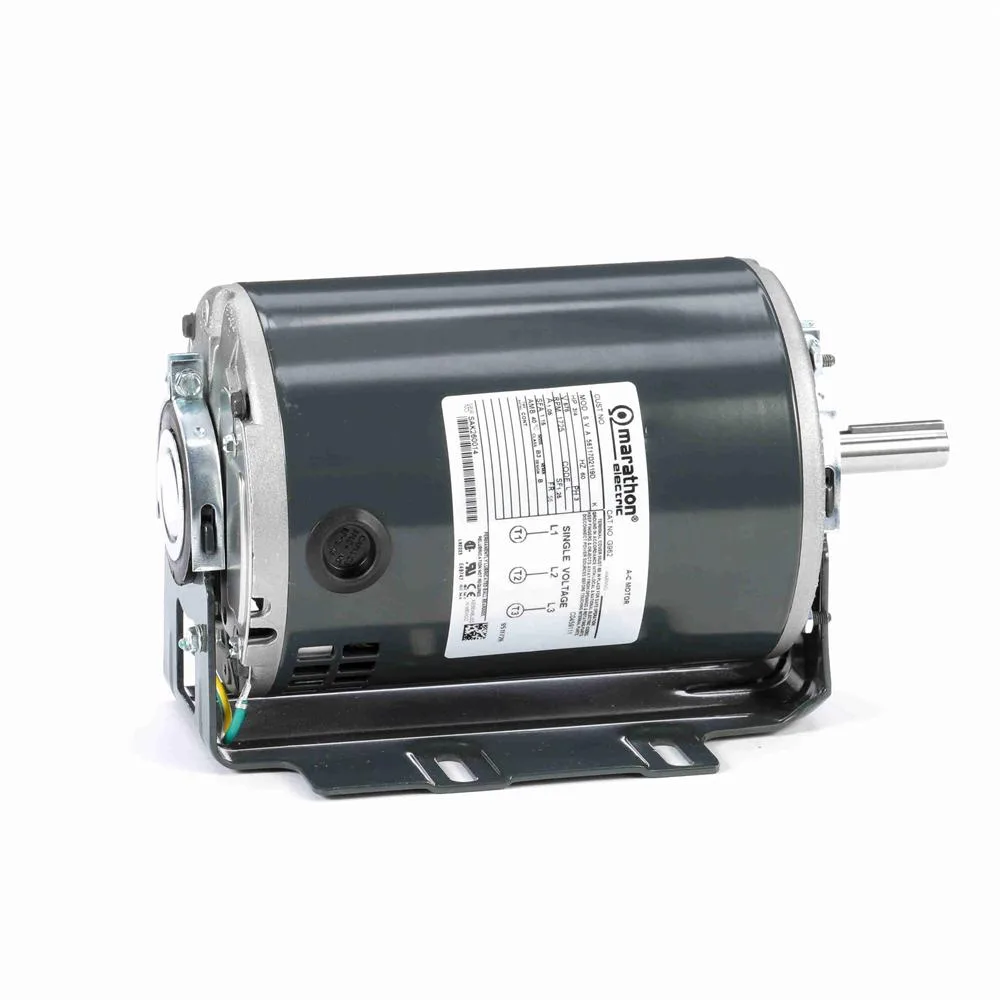

Marathon G962 3 Phase Blower Motor, 6-1/2" Dia., 3/4 HP, 1725 RPM
Marathon G962 three phase blower motor, 6-1/2" diameter, 3/4 HP, 1725 RPM, 575 V, three phase.
- Motor type
- Three phase
- Power
- 3/4 HP
- Speed
- 1725 RPM
- Voltage
- 575 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Add the Marathon G962 3 Phase Blower Motor, 6-1/2" Dia., 3/4 HP, 1725 RPM to your quote. Send us a photo of the nameplate of the old motor and we will confirm the match before you order.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.
Key details: Motor type: Three phase. Power: 3/4 HP. Speed: 1725 RPM. Voltage: 575 V, 60 Hz, three phase. Current: 1.05 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.97" (50.04 mm) long. Mounting: base. Part code: G962. Manufacturer model number: 056T17D2119.
Before you order: four quick checks
- Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.97" (50.04 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 3/4 HP, 1725 RPM, 575 V, 60 Hz, three phase, 1.05 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed.
- Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
We supply Marathon motors and fan and blower motors to Khasab, Rustaq, Al Buraimi and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
Specifications
| Motor type | Three phase |
|---|---|
| Power | 3/4 HP |
| Speed | 1725 RPM |
| Voltage | 575 V |
| Current | 1.05 A |
| Phase | 3 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 56 |
| Motor diameter | 6-1/2" (165.1 mm) |
| Shaft diameter | 5/8" (15.88 mm) |
| Shaft length | 1.97" (50.04 mm) |
| Motor shell length | 7" (177.8 mm) |
| Overall length | 10.97" (278.64 mm) |
| Mounting | Base |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.25 |
| Efficiency | 75.5% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Manufacturer model number | 056T17D2119 |
| SKU | FM-194 |
| Part no. | G962 |
| Brand | Marathon |
