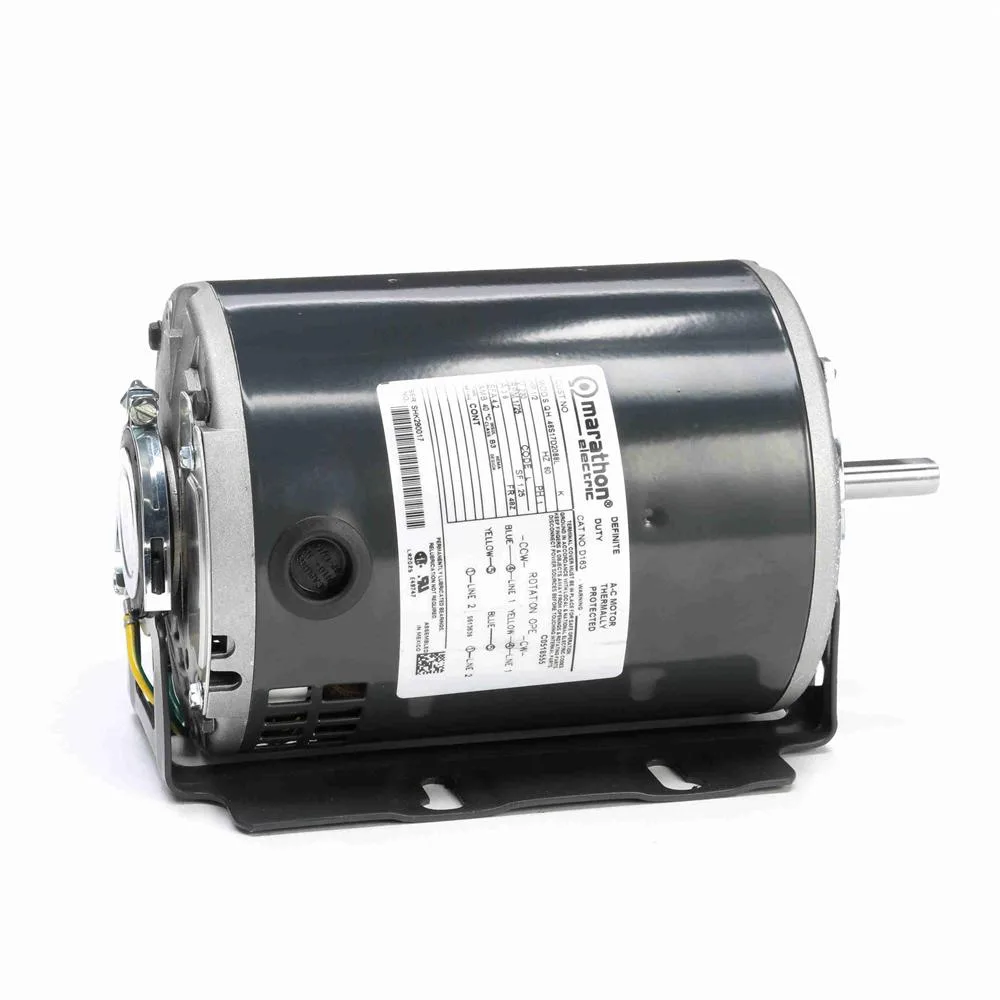

Marathon D163 Split Phase Blower Motor, 5-5/8" Dia., 1/2 HP, 1725 RPM

The Marathon D163 Split Phase Blower Motor, 5-5/8" Dia., 1/2 HP, 1725 RPM is part of our range of Marathon blower motors, delivered throughout Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/2 HP. Speed: 1725 RPM. Voltage: 230 V, 60 Hz, single phase. Current: 3.6 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.59" (40.39 mm) long. Mounting: base. Part code: D163. Manufacturer model number: 048S17D2088.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.59" (40.39 mm) long, frame 48Z, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/2 HP, 1725 RPM, 230 V, 60 Hz, single phase, 3.6 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed.
• Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Barka, Khasab and Rustaq, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
