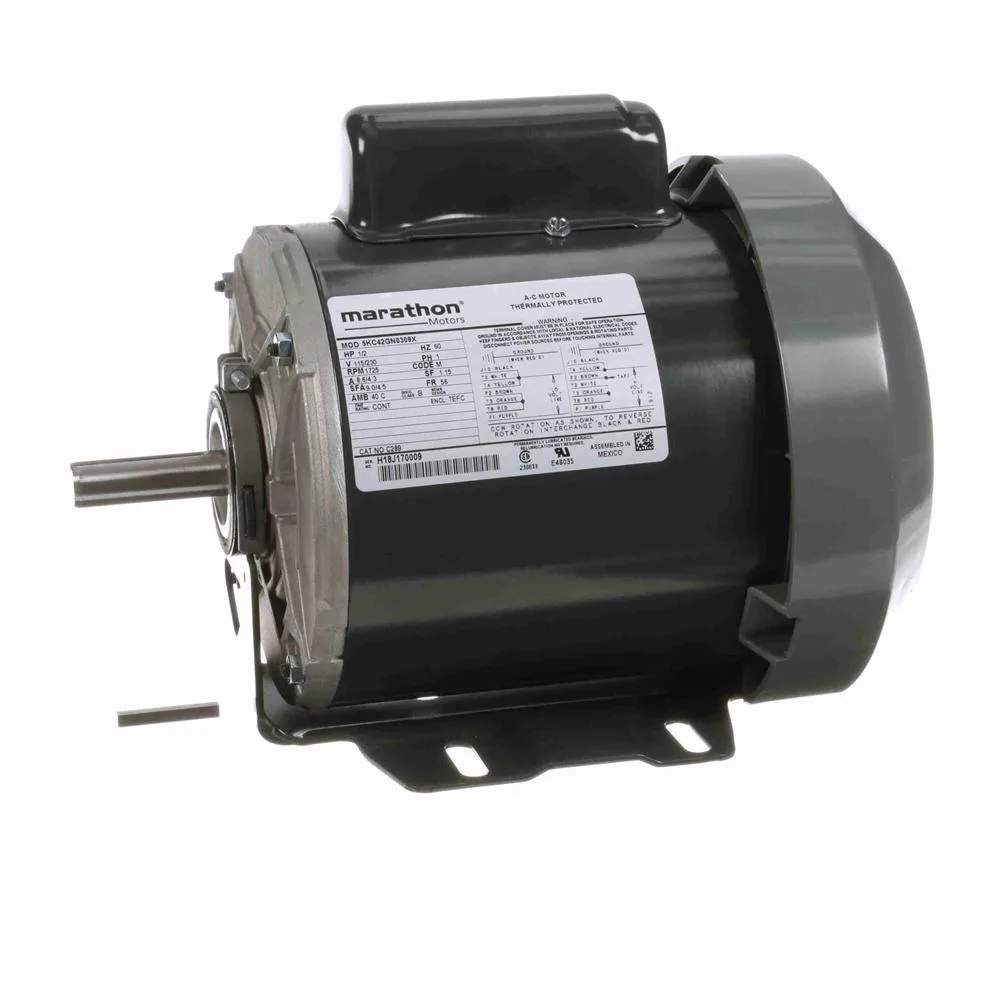

Marathon C289 Capacitor Start Blower Motor, 6-1/2" Dia., 1/2 HP, 1725 RPM

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a capacitor start blower motor, the Marathon C289 Capacitor Start Blower Motor, 6-1/2" Dia., 1/2 HP, 1725 RPM is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: Capacitor start. Power: 1/2 HP. Speed: 1725 RPM. Voltage: 115/230 V, 60 Hz, single phase. Current: 8.6/4.3 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: C289. Manufacturer model number: 5KC42GN0309X.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/2 HP, 1725 RPM, 115/230 V, 60 Hz, single phase, 8.6/4.3 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Salalah, Bahla and Ibri, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
