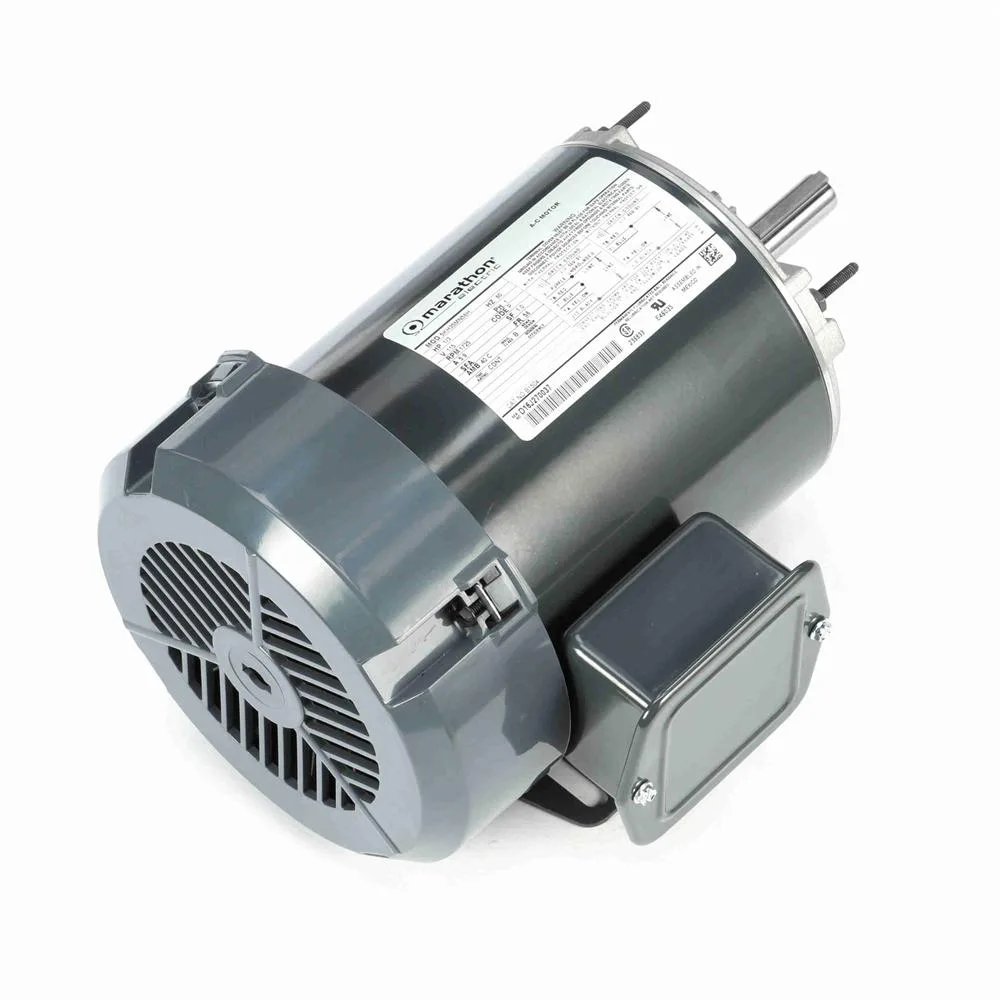

Marathon B1504 Split Phase Blower Motor, 6-1/2" Dia., 1/3 HP, 1725 RPM
Marathon B1504 split phase blower motor, 6-1/2" diameter, 1/3 HP, 1725 RPM, 115 V, single phase.
- Motor type
- Split phase
- Power
- 1/3 HP
- Speed
- 1725 RPM
- Voltage
- 115 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
The Marathon B1504 Split Phase Blower Motor, 6-1/2" Dia., 1/3 HP, 1725 RPM is part of our range of Marathon blower motors, delivered throughout Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/3 HP. Speed: 1725 RPM. Voltage: 115 V, 60 Hz, single phase. Current: 5.9 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: B1504. Manufacturer model number: 5KH35MN56.
Before you order: four quick checks
- Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 1/3 HP, 1725 RPM, 115 V, 60 Hz, single phase, 5.9 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
- Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Need it delivered to Nizwa, Sohar and Bidbid, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
Specifications
| Motor type | Split phase |
|---|---|
| Power | 1/3 HP |
| Speed | 1725 RPM |
| Voltage | 115 V |
| Current | 5.9 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 56 |
| Motor diameter | 6-1/2" (165.1 mm) |
| Shaft diameter | 5/8" (15.88 mm) |
| Shaft length | 1.88" (47.75 mm) |
| Motor shell length | 5.79" (147.07 mm) |
| Overall length | 10.9" (276.86 mm) |
| Mounting | Base |
| Mounting orientation | Any |
| Rotation | Reversible |
| Enclosure type | TEFC (totally enclosed fan cooled) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 62% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Manufacturer model number | 5KH35MN56 |
| SKU | FM-243 |
| Part no. | B1504 |
| Brand | Marathon |
