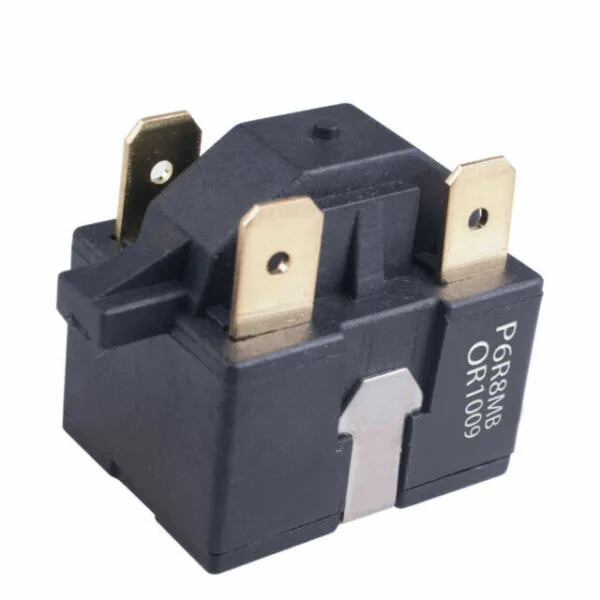

Fridge Compressor Starting Relay (3-Pin) and OLP for Double Door Refrigerators (210L to 300L)

The Fridge Compressor Starting Relay (3-Pin) and OLP for Double Door Refrigerators (210L to 300L) is part of our range of fridge relays and capacitors, delivered throughout Oman.

A compressor start relay connects the start winding of the compressor for a moment while it starts, and then disconnects it. An OLP (overload protector) switches the compressor off if it draws too much current or gets too hot. Number of pins: 3. Includes: Relay and OLP (overload protector). Suitable for: Double door refrigerators, 210L to 300L.

Before you order: four quick checks

• Match the pins: this set is listed as a 3-pin relay with OLP. Count the pins of your old relay and compare.
• Check the refrigerator: it is listed for double door refrigerators of 210L to 300L. Send us the model of your refrigerator and a photo of the compressor label.
• Check the OLP: it must suit the compressor, and its rating is not listed, so tell us the details on the compressor label and we will confirm the match.
• Disconnect the refrigerator from the power supply before you replace the relay, and discharge any capacitor in the circuit before you touch it. Send a photo of the old part and of the compressor label on WhatsApp and we confirm the match.

Need it delivered to Nizwa, Sohar and Bidbid, or anywhere else in Oman? Ask for a quote for this item; we reply with the price, availability and delivery time. More fridge capacitors and relays are on the site.
